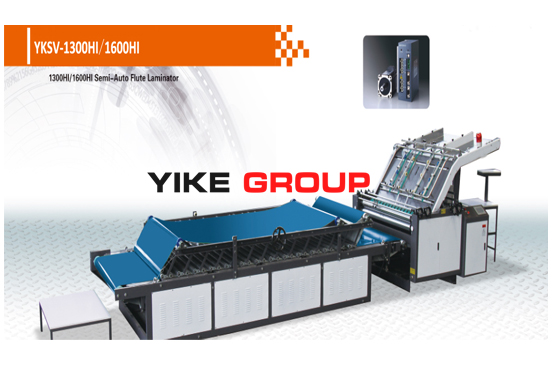

YK-1300H Semi Automatic Flute Laminator Machine

Product Features:

1- Top paper up and down by lift

2- bottom paper auto feeder

3-option servo drive

Return to product list
Product parameters:

 Use and Characteristics:

The machine design is advanced, can realize high speed continuous working, this is most advanced, dated, and exact machine in the semi-automatic flute laminator field. The machine adopts chian pusher and back registration system together with spring blade side lay and vacuum sucking conveying makes this series of machine fit for a large range of paper, high prcision while remaining the features of easy operation and maintenance. The whole machine adopts the program of PLC, prewarning equipment. The quantity of production is near to the automatic laminator. The requirment of cardboard for automatic laminator is high.

Compare to this new type semi-automatic laminator, the requirment of surface paper and corrugated sheet much lower.

Even the sheet little bent also can working normally.



Technological parameter

Model YK-1300H  YK-1500H YK-1600H
Max size 1300mmx1200mm 1500mmx1200mm 1600mmx1200mm
Min size 360mmx360mm 360mmx360mm 360mmx360mm
Economic speed 0-100pcs/min 0-100pcs/min 0-100pcs/min
Precision ±1mm ±1mm ±1mm
Power 9.5kw 9.5kw 9.5kw
Size 12mx1.95mx2.43m 12mx2.15mx2.43m 12mx2.25mx2.43m
Weight About 4t About 4.5t About 4.5t
