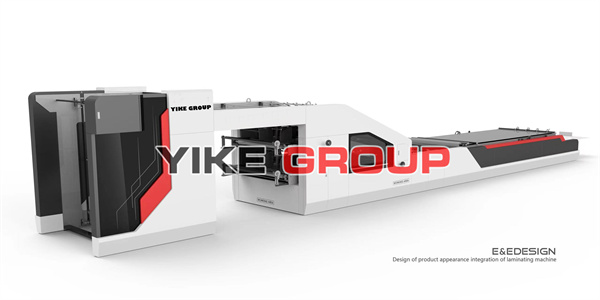

YK-1450F 5 Ply Automatic Flute Laminator
I.Introduction
YK-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.
II. Technological parameter:
|
Name |
Requirement |
Requirement |
Requirement |
|
|
Model |
YK-1300F |
YK-1450F |
YK-1600F |
|
|
Max. Paper size（W*L） |
1300*1300 mm |
1450*1300 mm |
1600*1300 mm |
|
|
Min. Paper size（W*L） |
500*500 mm |
600*600 mm |
||
|
Face paper thickness |
250-500 g/m2（standard paper board） |
|||
|
Flatness requirements on face paper |
Curve height should less than 0.2 times of paper thickness |
|||
|
Requirements on film |
Film ends should be less than 2 times of paper thickness |
|||
|
Bottom paper |
A、B、C、E、F flute |
|||
|
Flatness requirements on bottom paper |
Within 15/1000 mm |
|||
|
Corrugated paper deflection |
Curve height should less than 0.2 times of paper thickness, deflection should be less than 2times of flute height |
|||
|
Requirements on the height of corrugated flute |
If there is difference between tow flute, difference should be within 1/20 of the corrugated height |
|||
|
Diagonal requirement |
Less than 3/1000 mm |
|||
|
Size requirement on face paper and bottom paper |
Size of face paper should be 8 mm larger than that of the bottom paper |
|||
|
Laminate layers |
Face paper+corrugated paper=3 layers or Face paper+corrugated paper+corrugated paper=5 layers（total thickness less than 10 mm） |
|||
|
Precision |
±1.5mm（according to the paper quality） |
|||
|
Speed |
100 m/m（theoretical value ） |
90 m/m（theoretical value） |
||
|
Production efficiency |
0-6000 sheets/h |
0-5000 sheets/h |
||
