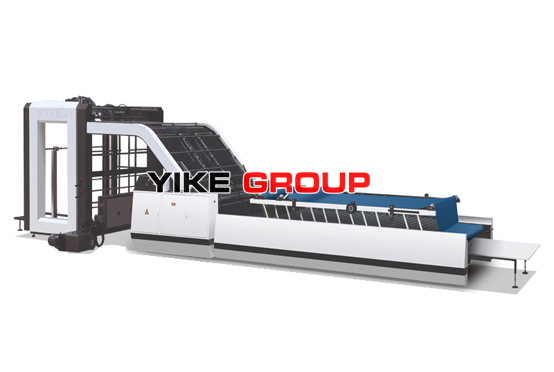

YK-1300A Fully Automatic Flute Laminator Machine

Product Features:

1-Fully automatic flute laminator machine

2-Maxspeed 120pcs/min

3-servo drive

Return to product list
Product parameters:

 Use and Characteristics:

◆ The vacuum suction-type feeding system can lead the paper accurately into the machine; cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more

efficient.

◆ Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

◆ The machine operation is stable, surface paper with corrugated paper joint very Accurate.

◆ The corrugated paper never pull ahead, surface paper’s location is easy adjust.

◆ Machine uses touch-screen/PLC/servo motor control system, the circuit system is stable , and can automatically display the failure alarm.

◆ Automatic gluing ,and the glue can be used circulatory, avoid glue waste.

◆ Roller design scientifically, avoid glue fly out when the speed is high.

◆ Pressure rollers adopt unilateral adjustment, convenient and fast.

◆ Rocker controls wash roller’s fluctuation, easy cleaning.

◆ Counter designs scientifically, easy recording the amount you have been worked.


Technological parameter

Model YK-1300A YK-1500A YK-1600A
Max size 1300mmx1200mm 1500mmx1200mm 1600mmx1200mm
Min size 400mmx400mm 400mmx400mm 400mmx400mm
Max speed 8000( Pcs/h) 8000( Pcs/h) 8000( Pcs/h)
Precision ±1mm ±1mm ±1mm
Power 14kw 14kw 14kw
Size 13.5mx2mx2.9m 13.5mx2.15mx2.9m 13.5mx2.25mx2.9m
Weight About 5t About 6t About 6t
