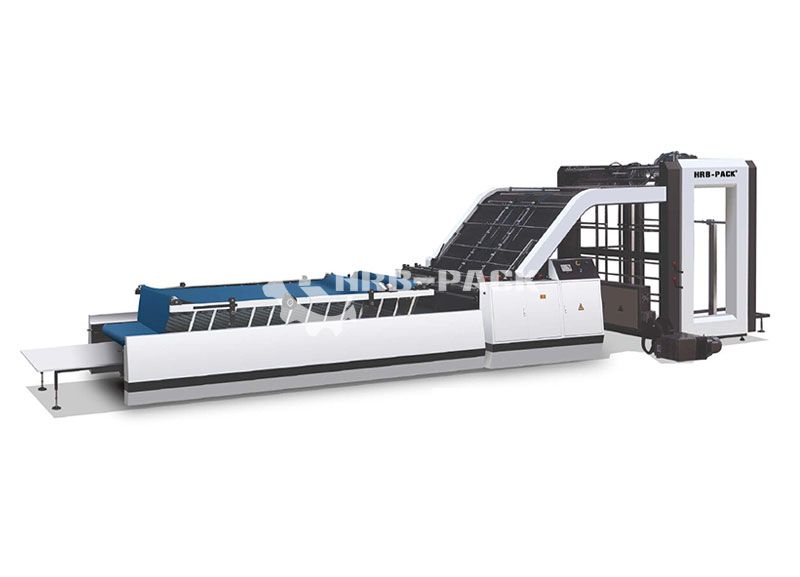

HRB-1300A Fully Automatic Flute Laminator Machine

Product Features:

1、Type: 1300A;1500A;1600A Flute Laminator

2、Brand: HRB PACK

Return to product list
Product parameters:

Introduction:



    This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for the top paper of the Cardboard paper (Duplex paper) from 175-600GSM, kraft paper from 130-450GSM, E flute. The bottom paper of the A/B/C/E/F flute, four layers paper, such as: AB/BB/BC/BE/EE, gray board paper from 600GSM to 2000GSM and three layers and five layers corrugated paper.

 Specification:

Model HRB-1300A HRB-1500A HRB-1600A
Max size 1300mmx1200mm 1500mmx1200mm 1600mmx1200mm
Min size 400mmx400mm 400mmx400mm 400mmx400mm
Max speed 8000( Pcs/h) 8000( Pcs/h) 8000( Pcs/h)
Precision ±1mm ±1mm ±1mm
Power 14kw 14kw 14kw
Size 13.5mx2mx2.9m 13.5mx2.15mx2.9m 13.5mx2.25mx2.9m
Weight About 5t About 6t About 6t
