1- lead edge feeder cardboard
2-computer control
3-Max speed: 150pcs/min

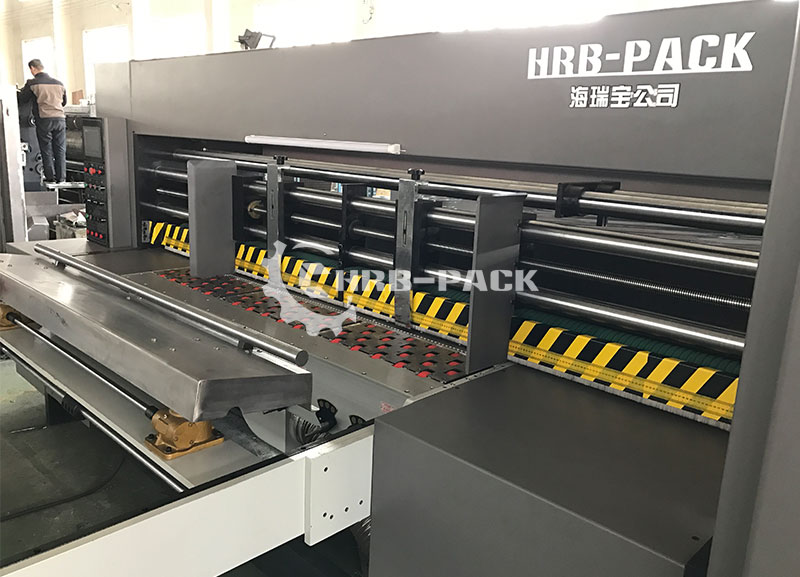

Return to product listPaper Feeding Part
1. Adsorption automatic feeder, one-slotting, Cut corner, creasing, drilling.
2. precision die cutting from+0.75mm to-0.75mm
3. Phase planetary gear used electric adjustment, turn on and turn down were quick adjustment.
4. Before manually adjust block cardboard side block electric adjustment
5. Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy.

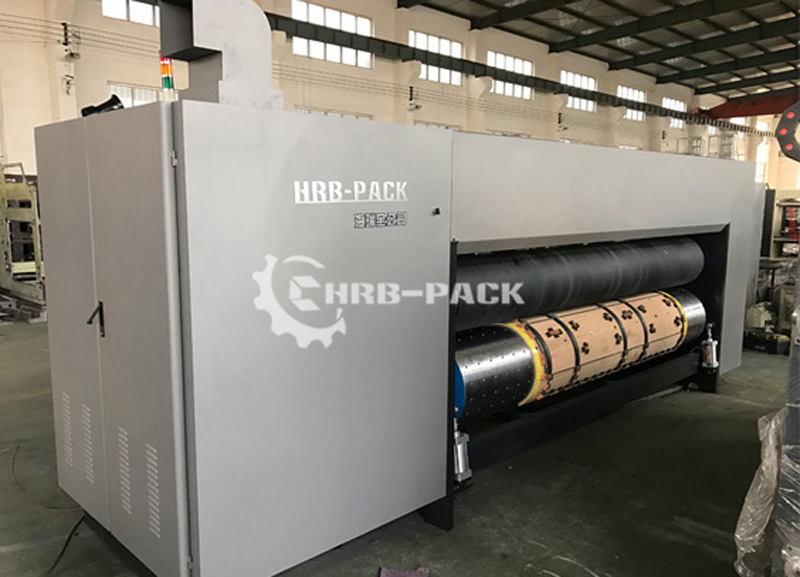

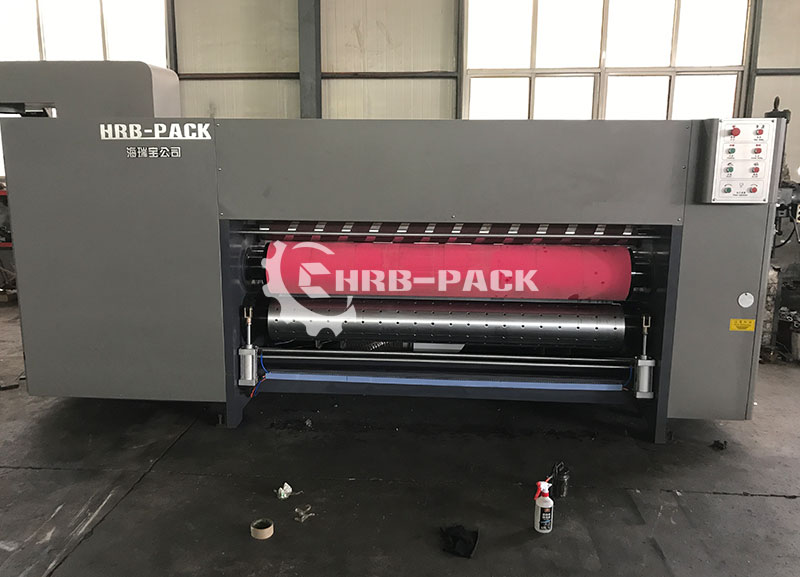

Die Cutting Part
1. Die cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating.
2. Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.
3. Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;
4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;
5. Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;
6. Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform;
7. 40cr material the use of grinding gears for 6,low noise long life;
8. Die cutting roller cylinder automatic separation devices to reduce wear pouches.
MODEL | HRB-1424 |
ROLLER DIAMETER | 480MM |
MAX PAPER SIZE | 1400X2400 |
MIN PAPER SIZE | 350X350MM |
SPEED | 120PCS/MIN |
WEIGHT | 5000KG |
