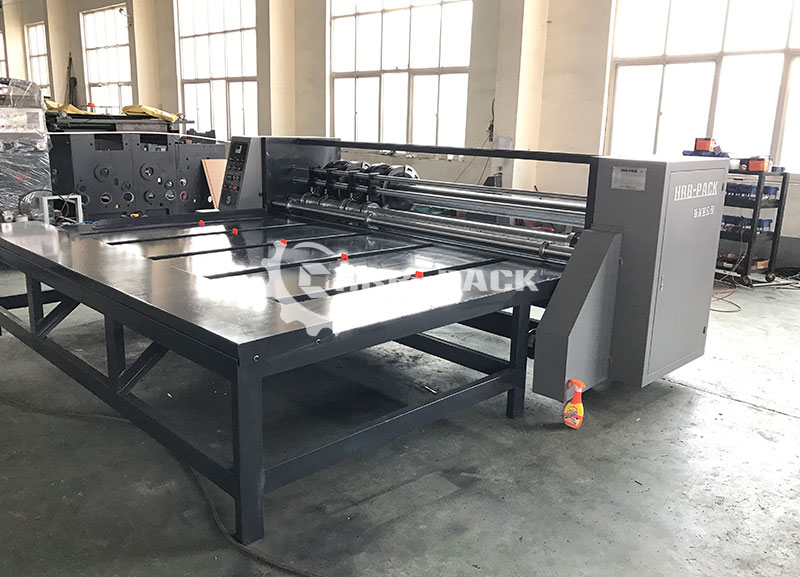

1-chain feed cardboard

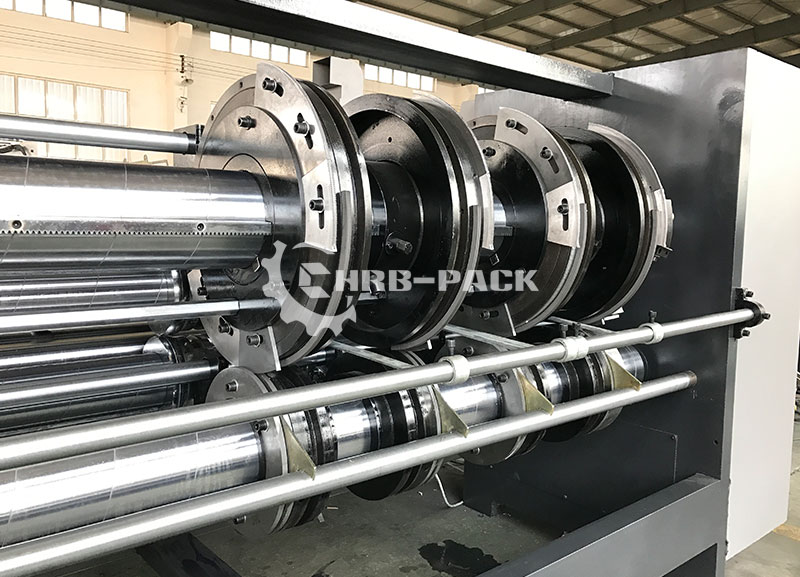

2- combined slotter and creaser
3-electric phase
Return to product listMAIN FEATURES:
1.Feeding table adopts chain style manual feeding paper.
2.Slot blade phase adopts 360°electronic position and negative turn slightly adjust,blade axes treated by rigidity chroming electroplate,and nicety grinding ,firmness durable .
3.Gear lubricate ,adopt spout out style cys. Reduce noise,prolong gear using life .
4.Adopt hackle blade .
5.Can matched stiletto equipment .
6.Blades and crease lines Combined moved left and right
SPECIFICATION:
Model | HRB1425 |
Maximum speed | 60PCS/min |
Notching width | 45mm |
Slot width | 7.5mm |
Maximum feed size | 1400×2400mm |
Maximum groove depth | 300mm |
Minimum feed size | 650×350mm |
Main motor power | 4.0kw |
Weight | 4000kg |

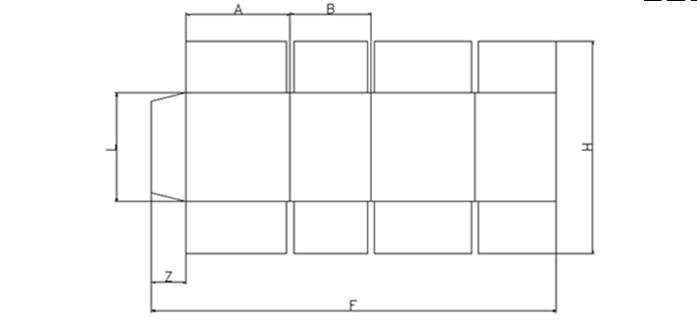

A | B | Z | F | H | L | |
MIN | 280 | 60 | 50 | 500 | 350 | 100 |
MAX | 1000 | 800 | 50 | 2400 | 1400 | 750 |
