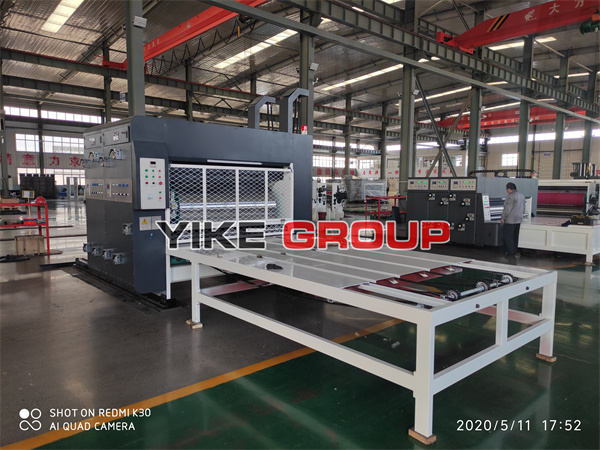

Chain Feed Flexo Printer Slotter Die Cutter Machine with Stacker

Product Features:

1-Chain feed printer slotter die cutter machine

2-Speed 60pcs/min



3-Brand: YIKE GROUP



Return to product list
Product parameters:

 Feeder unit

◆ chain of semi-automatic feed

◆ ateral positioning to guarantee accurate feed

◆ automatic counting



Printer unit

◆ electric planetary phase adjustment, the figures show

◆ Mechanical parking, the net roll automatically from the plate surface.

◆ ink rubber roller automatic idling system, the machine stop when the ink to dry.

◆ automatic brake institutions and the unit after the separation, brake locking weeks displacement, keep the press bit.

◆ can be any combination of one to four colors.

◆ pneumatic suction ink system saves ink, easy to clean.

◆ according to user requirements, the plates of the roller can be used hanging devices to make pasting save time, effort.



Slotter unit

◆ slotting phase 360 degrees electric planetary gear adjustment.

◆ slotted parts of the tool of special design and manufacture of long service life.45 steel forgings

◆ gear, helical gear driving.

◆ All roller by polished chrome handle.

◆ spray lubrication, ensure life.

◆ unit electric displacement, cylinder lock.


Technological parameter

Modle 920 1224 1424
Max.machine speed(pcs/m) 60 60 60
Max.feeding size (mm) 900×2200 1200x2400 1400×2400
Min.feeding size (mm) 280×680 350×680 420×680
Max.Depth of slotting (mm) 230 300 410
Crosscutting accuracy(mm) ≤±1.5
Registration precision (mm) ≤±0.4 (four colour) ≤±0.5 (fourcolour)
Printing plate thickness (mm) 7.2
Max.printing area (mm) 2.5—12
Min.slotting interval (mm) Normal 160x160x160x160
Reverse 300x60x300x60
