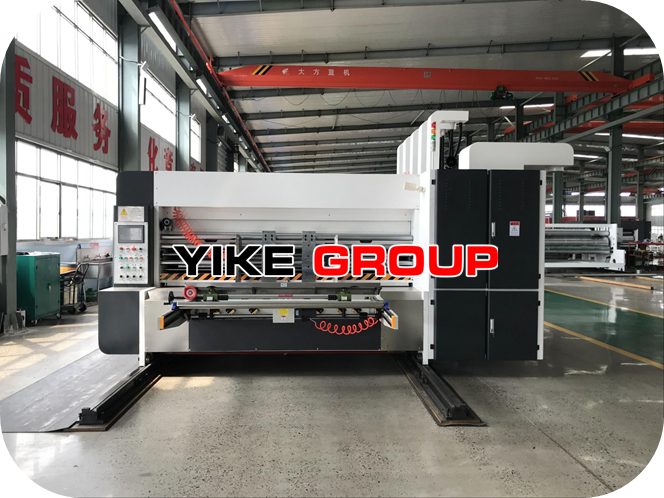

1-Lead edge feeder printer slotter die cutter
2-economic model
3-Speed 80-120pcs/min
Return to product list
Use and Characteristics:
◆ High-quality material and fittings are used for the machine.
◆ The drive gears are hardened and ground.(Hardness>HRC60).
◆ Automatic zero set.
◆ All the clearance can be adjusted manually or electrically.
◆ The machine is manufactured according to the high requirement foroperation,reliability and safety. Rapid order changing and convenient operation.
◆ All rolling shafts are plated with Chromium to enhance hardness.
◆ All electrical appliances using CHNT brand, stable performance.
| Modle | 920 | 1224 | 1424 | ||
| Max.machine speed(pcs/m) | 120 | 100 | 100 | ||
| Max.feeding size（mm） | 900×2200 | 1200x2400 | 1400×2400 | ||
| Min.feeding size（mm） | 280×680 | 350×680 | 420×680 | ||
| Max.Depth of slotting（mm） | 230 | 300 | 410 | ||
| Crosscutting accuracy（mm） | ≤±1.5 | ||||
| Registration precision（mm） | ≤±0.4(four colour) | ≤±0.5 (fourcolour) | |||
| Printing plate thickness （mm） | 7.2 | ||||
| Max.printing area （mm） | 2.5—12 | ||||
| Min.slotting interval （mm） | Normal | 160x160x160x160 | |||
| Reverse | 300x60x300x60 |
||||
