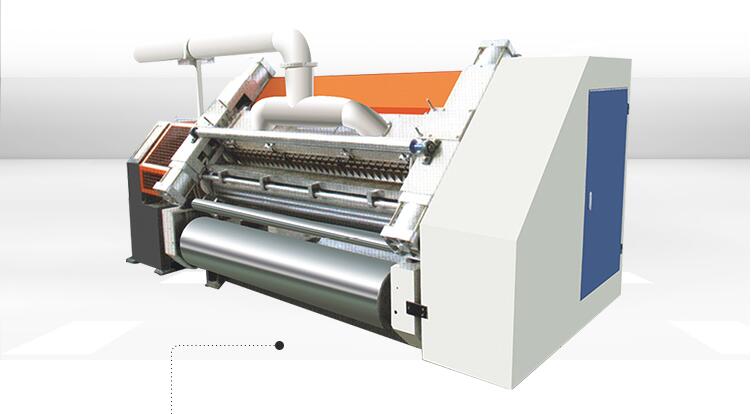

Structural features：

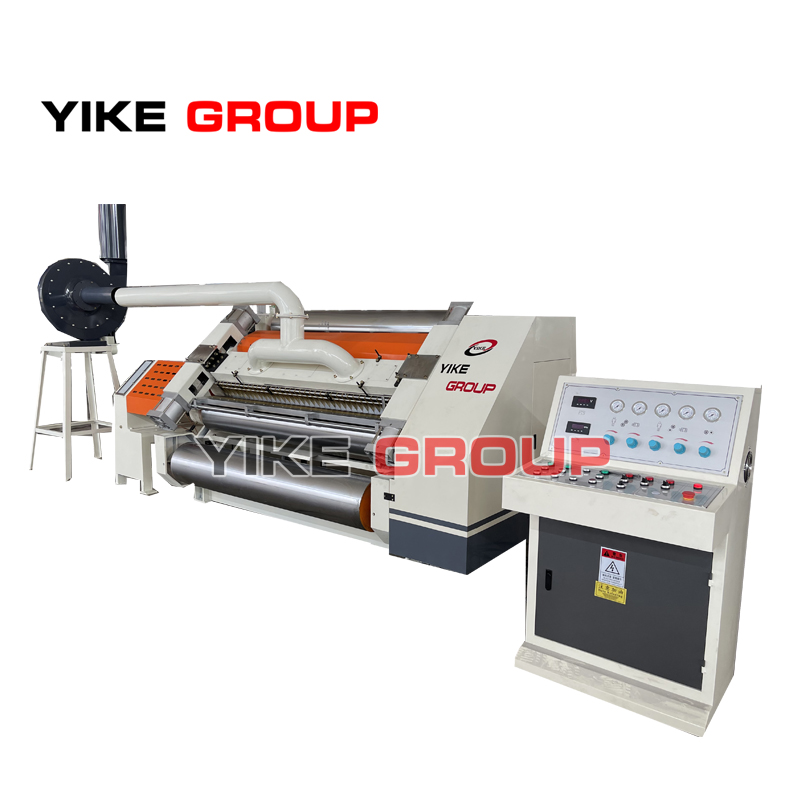

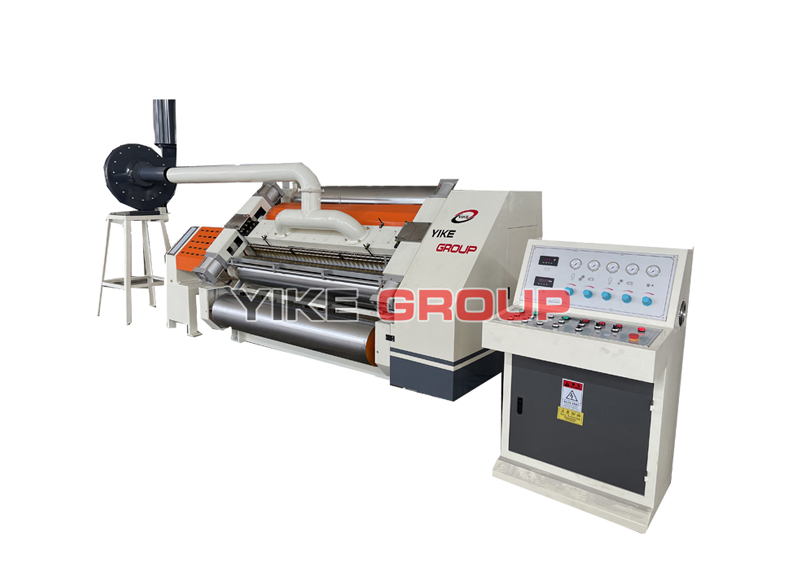

1.Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas

supply and electrical control cabinet to focus on the same operation cabinet，not less than

1.5 meters away from the host，Fully enclosed full operation side。

2. Base and wallboard cast iron wall，Wallboard thickness130mm。universal Joints。

3. Corrugated roller material adopt  48CrMoalloy steel，quenched、Laser hardening

Surface finish，main roll of corrugated diameter¢ 280mm，surface hardnessHRC60degree

above. The key parts of the tile and pressure roller bearings Wafangdian produce high

temperature bearings.

4.Pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and

remove up and down, 45 carbon steel materials, quenching (with cushioning devices)。

5.Pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished

surface after a 36-line pit style textured machined chrome plated，after scraping the roller

surface polished hard chrome plated.

6.Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on

corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢

160mm cylinder with compression cylinder.

7.Preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm，connecting with

metal Hose.
