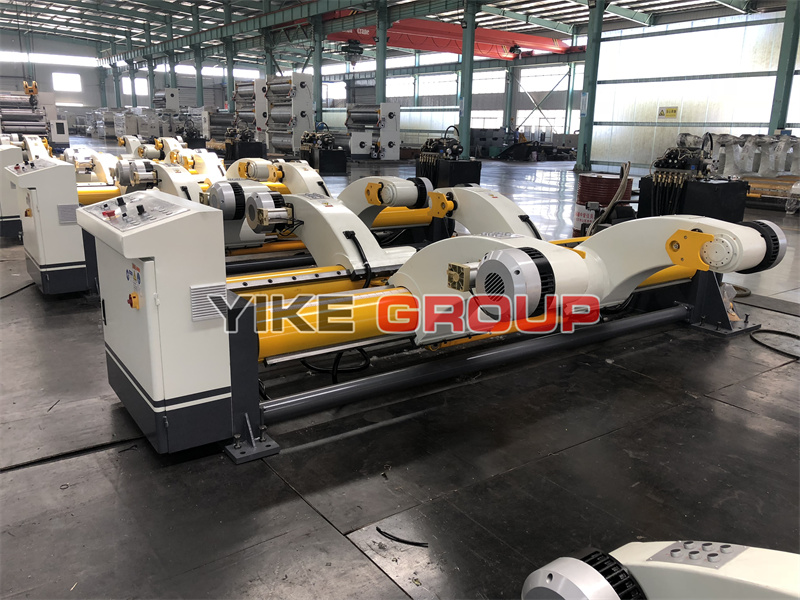

u ZJ-V5B hydraulic shaftless mill roll stand

Ø  structural feature：

ü  Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others，the lifting of the paper adopts hydraulic drive.

ü  Brake adjustable adopts multipoint braking system.

ü  Every stand matched two sets paper car , and  they can paper on the both sides at the same time.

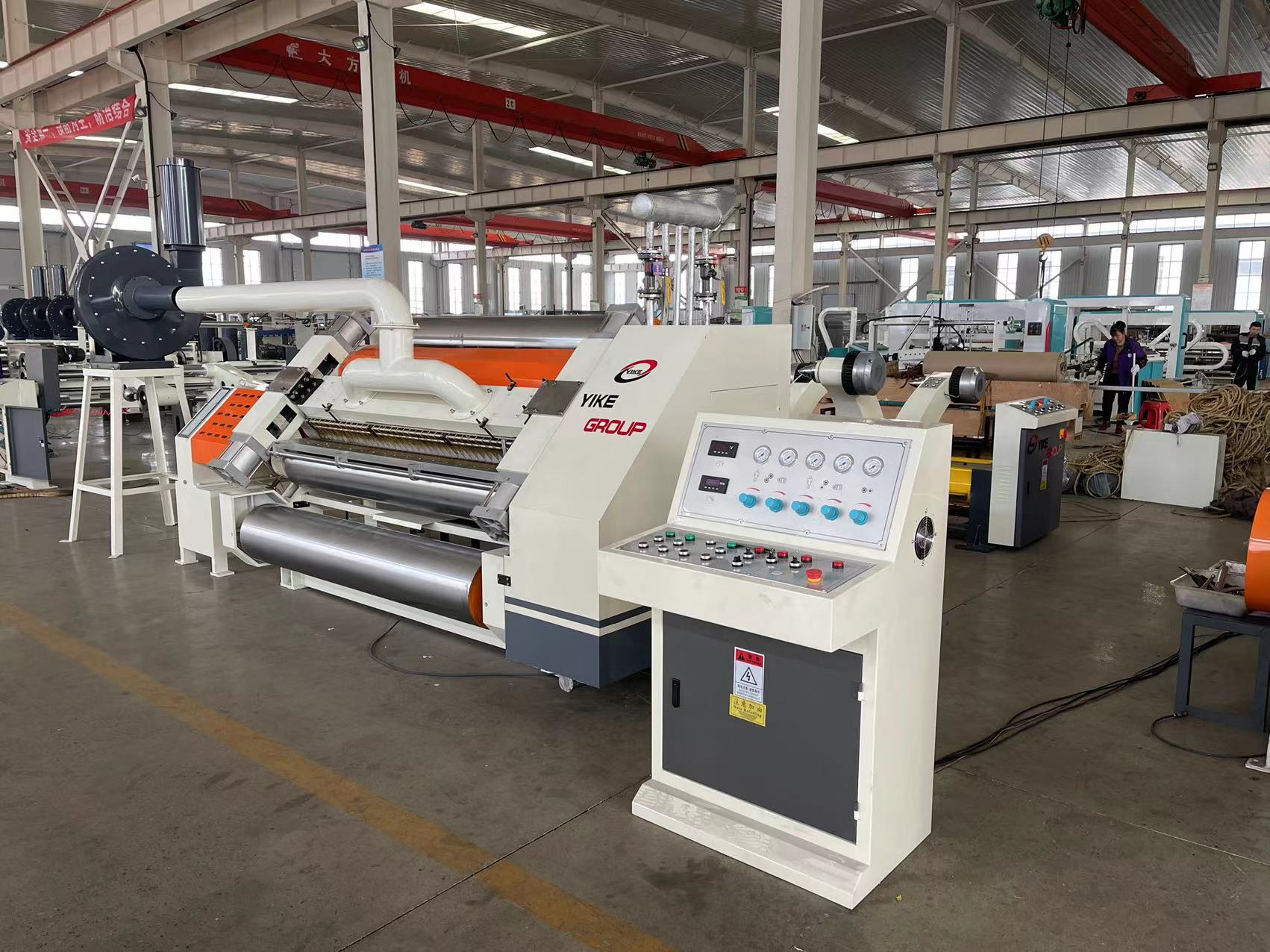

Single facer machine

Ø  regular technical parameters：

1、effective width：1600mm                  2、operation direction：left or right（determined in accordance with customer plant）

3、design speed：100m/min  working speed:60m/min

4、temperature range：200—260℃

5、corrugated flute:（UV type or UVV type）

Ø  roller diameters parameters：

1、diameter of corrugated roller： ￠280mm          2、diameter of pressure roller： ￠284mm

3、diameter of glue roller： ￠216mm              4、diameter of preheat roller： ￠320mm

Ø  powered motor parameters：

1、main drive motor：7.5Kw          rated voltage：380V    50Hz     Continuous (S1) working standard

2、suction motor:7.5Kw       rated voltage：380V    50Hz     Continuous (S1) working standard

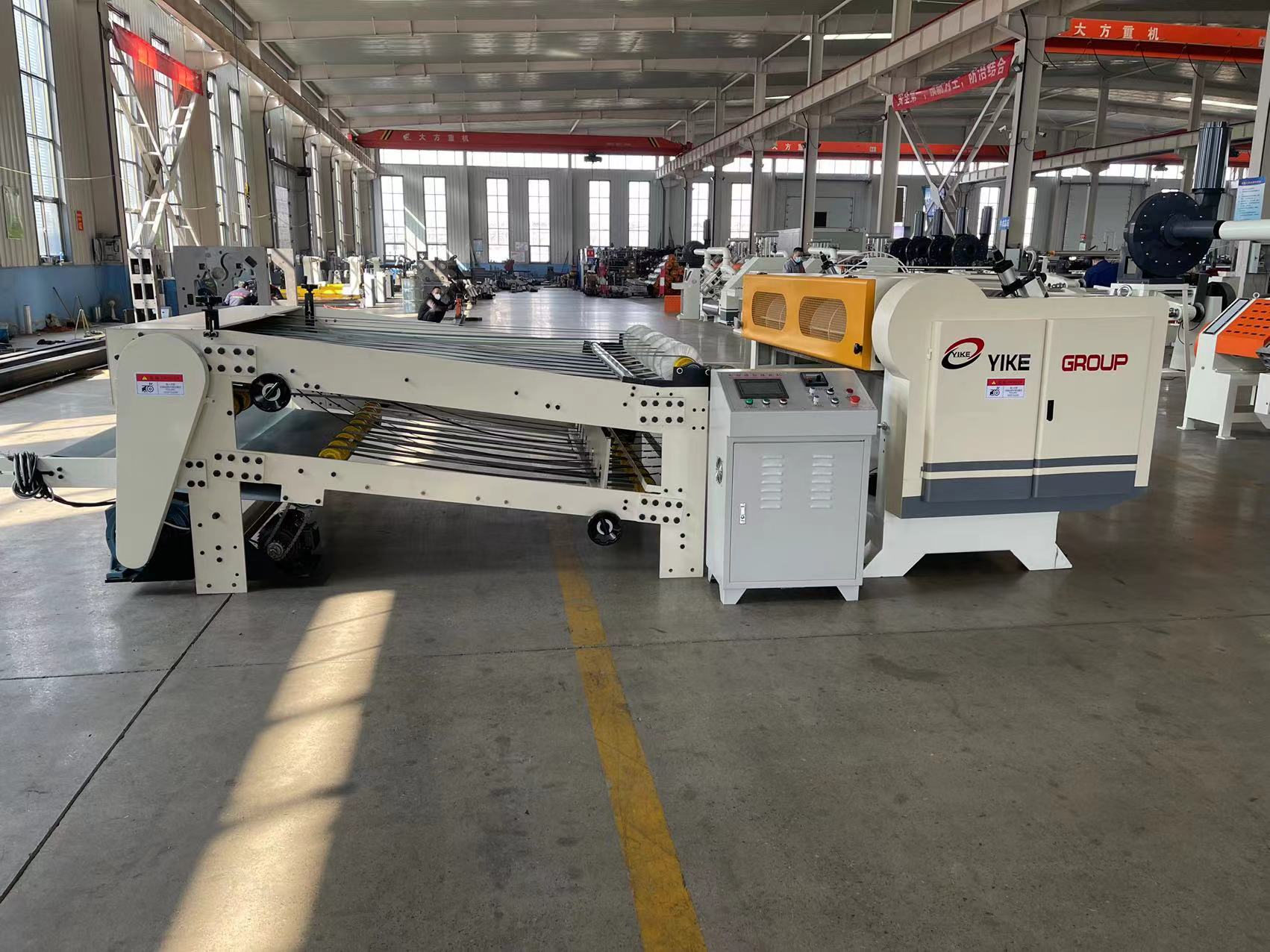

u NC-1600 Computer sheet cutter machine

Ø  General technical parameters:

l  Working width：1600mm

l  Mechanical speed：60m/min

l  Minimum cut length：300mm

l  Maximum cutting length：9000mm

l  Cutting accuracy: uniform speed ±1.5mm

Ø  Power motor and electrical parameters:

l  Main drive motor power：3KW

l  Full AC Synchronous Servo Control

l  Papermaking motor power：3KW（Frequency）

u Rotary paper receiving machine

l  the machine receiving the highest speed 70m / min.

l  the maximum length of the machine to receive paper 1350mm.

l  the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.

l  the maximum stacking height of the local stacking unit is 100mm.

l  the automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.
