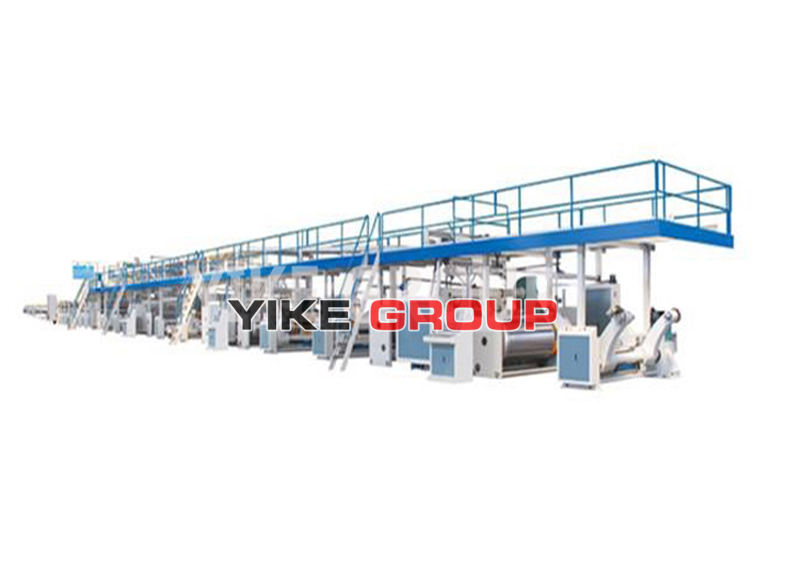

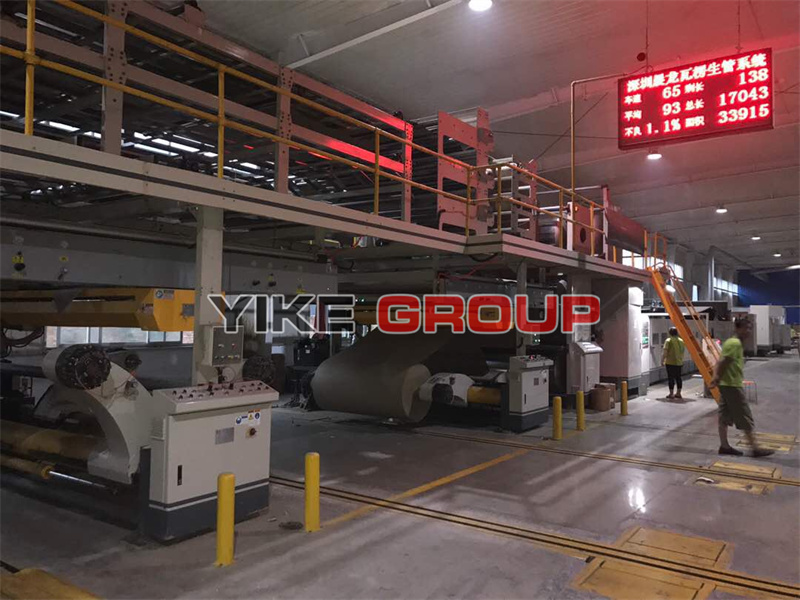

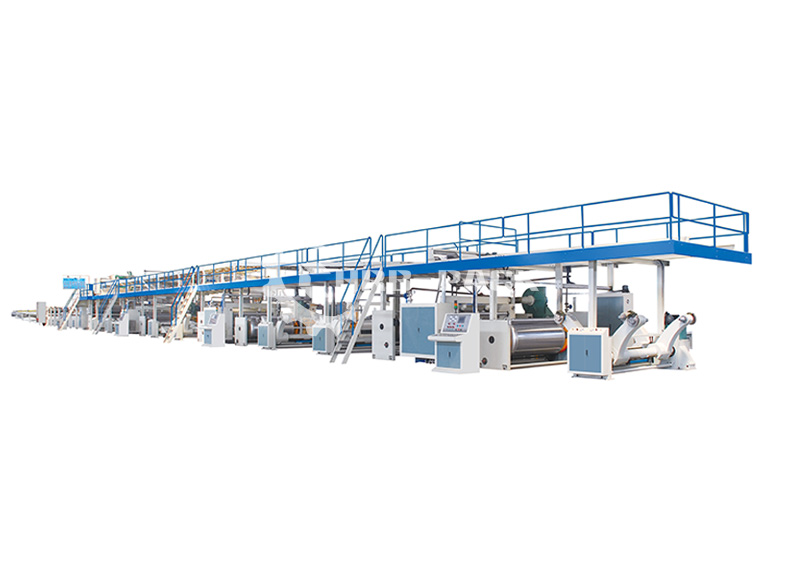

specification

Name

QTY

Remark

YV5B

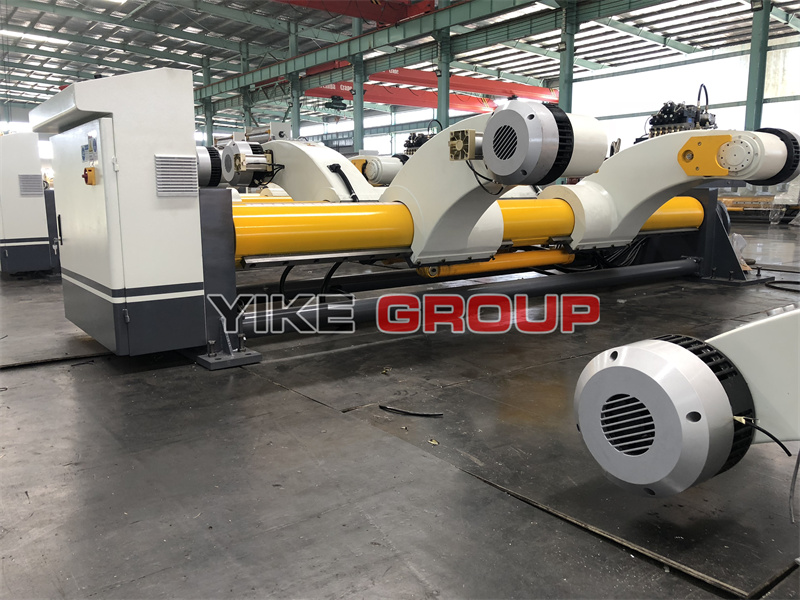

Hydraulic shaftless mill roll stand

5

Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.

Electric trolley，double track length 9000mm，use medium plate welding.

DXC

Electric trolley

10

JZJ

Automatic splicer

5

Automatic splicer keep corrugating cardboard assembly line uninterrupted work，Reduce paper consumption，Greatly improve productivity.Maximum speed200m/min

RG-1-900

Top paper preheat cylinder

2

roller ￠900mm，including pressure container certificate.Electric adjustment wrap angle。Wrap angle can  adjust the paper preheat area in the range of 360°.

RG-1-900

Core paper preheat cylinder

2

roller ￠900mm，including pressure container certificate.Electric adjustment wrap angle。Wrap angle can  adjust the paper preheat area in the range of 360°.

SF-360C1

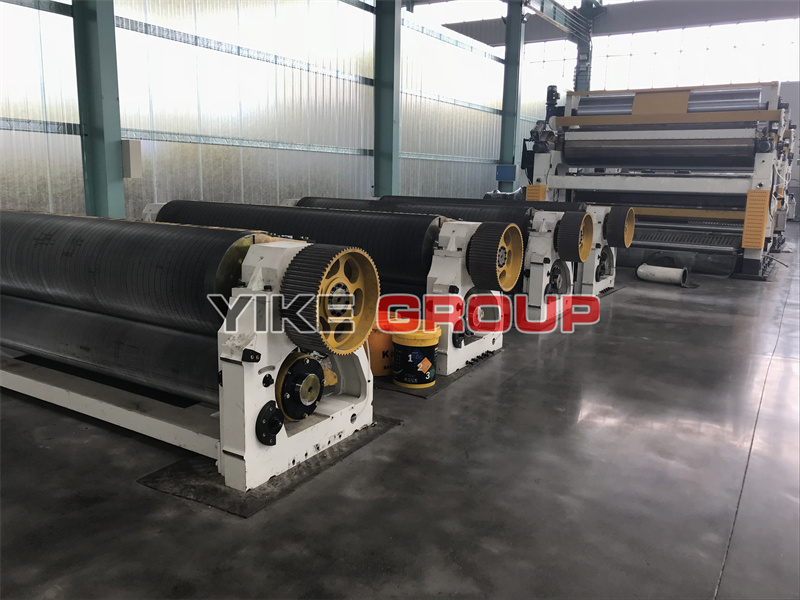

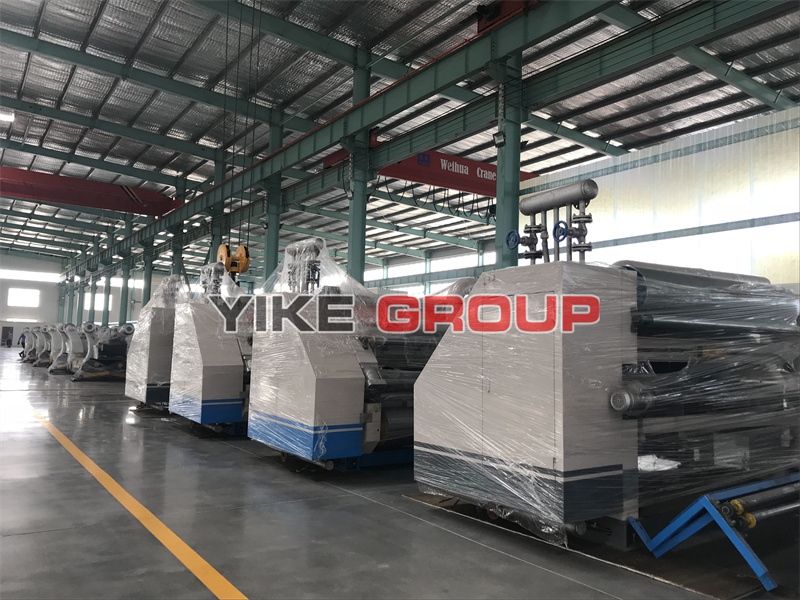

Fingerless type single facer

2

Main corrugated rollers diameter is  360mm,corrugated roller material is 48CrMo alloy steel with tungsten carbide processing, surface hardness HV1200 degree. Tile and modular group exchange. PLC automatic control glue, man-machine interface touch screen, paper cutting automatic parking pressure relief.

RG-3-900

Triple preheater

1

roller ￠900mm，including pressure container certificate.Electric adjustment wrap angle。Wrap angle can  adjust the paper preheat area in the range of 360°.

GM-30

Double  glue machine

1

Glue roller diameter 320mm.Each layer independent frequency motor drive,PLC adjust glue gap and HMI.

TQ

 heavy type conveyor bridge

1

200mm main beam channels, independent inverter motor drive pull paper feed, adsorption tension.Electric correction。

XG-JP

Automatic correction

１

No power correction model save energy.High precision sheet correction. Paper width change does not require any adjustment

Full width infrared detection curtain。Reduce paper waste generated tear。reduce the waste of paper edge not to precision.

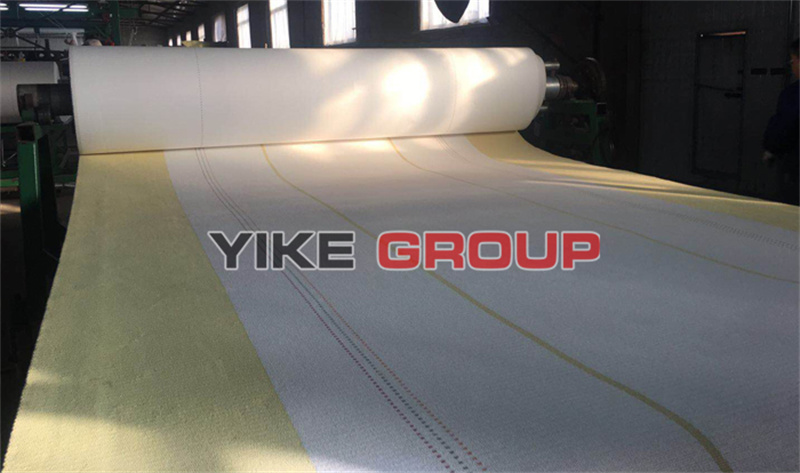

SM-E

Double facer

1

Rack 400 mm GB channel，Chrome hot plate 600 mm *18 pieces,entrance ￠400mm hot cylinder make the top paper quickly improve temperature，15 groups whole structure of the hot plate design.PLC automatic control press plate. Upper and lower automatic correction,Temperature display, frequency motor.

NCBD

NCBD thin blade slitter scorer

2

Tungsten alloy steel,  six knives ten lines，zero-pressure line type. Schneider servo computer automatically discharge knife, suction outlet width automatically adjusted.

NC-30D

NC cutter helical knives

1

Full AC servo control, energy storage brake, helical blade structure, helical gear transmission,oil-immersed gears pressure protective,10.4-inch touch screen display.

DM-LM

computer gantry automatic stacking machine

1

Servo drive platform lifting, three section of frequency transport，automatic points stack discharge,Imported high-strength belt output, out paper side standard transport aircraft.

ZJZ

Glue station system

1

Customers -owned pipeline。Glue configuration is composed by carrier tank、main tank、storage tank、and send plastic pump、back plastic pump。

QU

Gas source system

1

Air pump、pipeline is prepared by the customers.

ZQ

Steam system

1

Steam system components used in all GB valves。Including rotaty joint,upper and lower dispenser。traps，pressure table and so on。Customer-owned boilers and pipes.

SG

Production Management System

1

Improve the automation of production lines，easy to operate.reduce consumption,Improve the utilization of the base paper，save costs. Automatic control production line，stable cardboard quality. Increase the average speed，Increase productivity。Automatic statistics of production ，Easy to keep control of the production line, improve efficiency.

DQ

Electrical control cabinet system

1

Electronic control system：The entire line speed mechanism adopts electromagnetic speed motor。Cabinet surface  paint electrostatic spray ，Wearable and beautiful.The main contacts relays using major brands.
