1.Straight cut edge and long service life.
2.Level surface, clean mark
3.High moisture absorption and release; Low noise and high speed of operation.
4.Woven-in edge reinforcement ensures extra long service life.

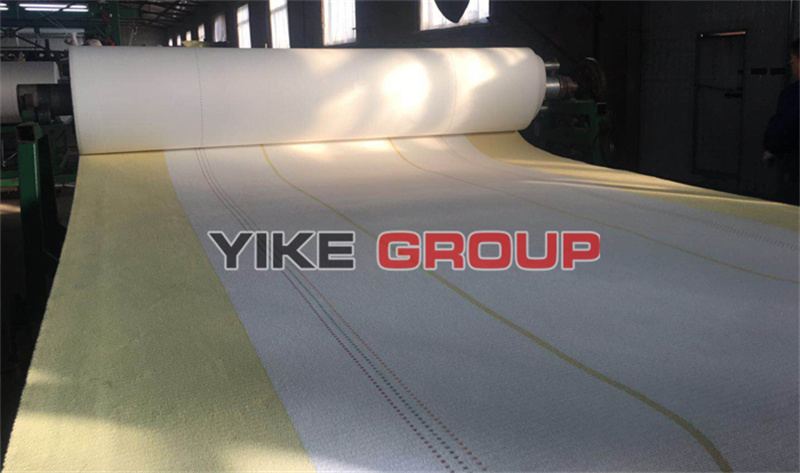

Corrugator belts are specifically developed for double-sided machines in corrugated systems. Their main task is to transport corrugated cardboard smoothly and dry it as much as possible. The belt bears enormous stress from temperature, contact pressure, friction, tensile stress, and moisture.
The corrugated belt is composed of multiple layers of fabric. The tear resistant, heat-resistant, and wear-resistant fibers give the belt excellent motion and transportation characteristics. This ensures the safety and reliability of your production process.
|
型号Model |
YK-K Kevlar Edge |
|
原材料Material |
Synthetics |
|
凯夫拉Kavlar Edge |
200 mm inwoven aramid edge |
|
厚度Thickness |
9-10 mm |
|
宽度Width |
1400mm-2500mm |
|
最高耐热温度Heat-resistance |
200℃ (Kevlar Edge part up to) 350℃ |
|
抗拉强度Break strength |
70 Mpa |
|
摩擦系数Coefficient of friction |
≥ 0.40µ |
|
重量Weight per unit |
(7.5±0.3)kg/㎡ |
|
透气度Air-permeability 40mm water Column |
2.0m³/㎡ min |
