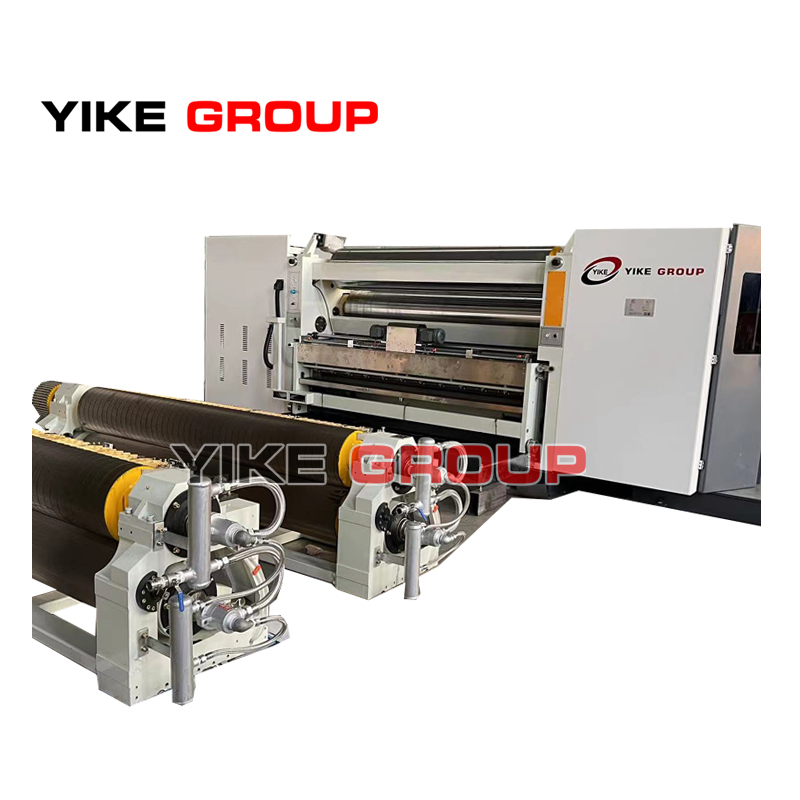

SF-360E/320E Cassette Single Facer

Product Features:

1- Cassette model sigle facer

2- Change Roller easily within 10 mins

3- Brand: HRB PACK


Return to product list
Product parameters:



1、effective width:2200mm


2、operation direction:left or right(Determined in accordance with the customer's facility)

 3、design speed:150m/min


4、temperature range:160—200℃


5、air source:0.4—0.9Mpa


6、steam pressure:0.8—1.3Mpa

7、corrugated flute:(UV type or UVV type)

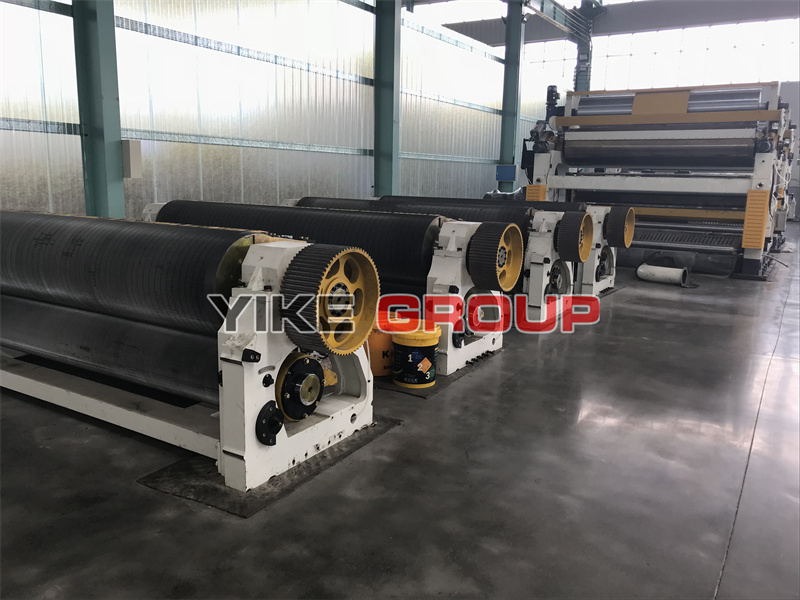

roller diameter parameters:



1、diameter of up corrugated roller: ¢320mm


2、diameter of pressure roller:¢269m

 3、diameter of glue roller:¢268mm


4、diameter doctor roller :¢153mm

5、diameter of preheater:¢400mm
