1- Width: 1600mm;1800mm;2200mm;2500mm
2- Diameter: 240mm/270mm
3- Brand Name: HRB PACK

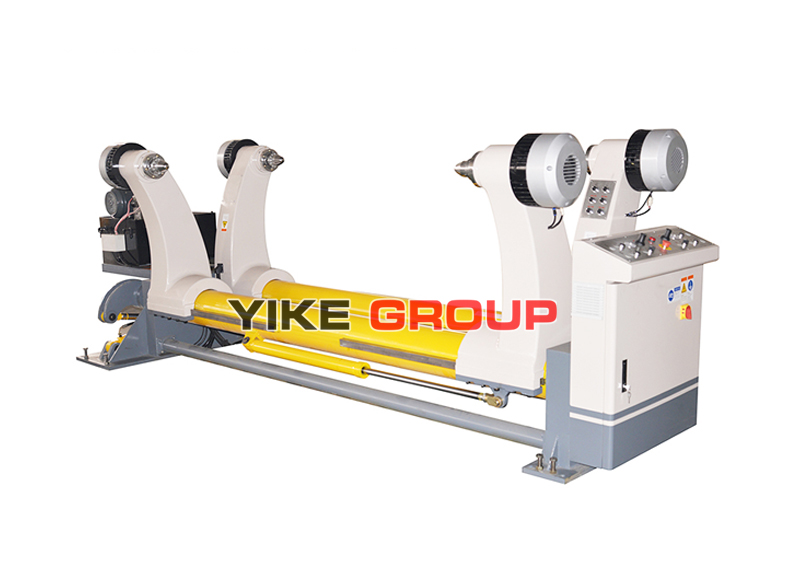

Return to product list※technical parameters
1、the range of clamping paper: MAX1800mm MIN1000mm
2、clamping diameters：MAX￠1500mm MIN￠350mm
3、main shaft diameter of paper holder：￠240mm
4、gas source work pressure（Mpa）：0.4---0.8Mpa
5、equipment size：Lmx4.3*Wmx1.8*Hmx1.6 6、single weight：MAX4000Kg
※Hydraulic system parameters
1、Work pressure（Mpa）:16---18Mpa 2、lifting hydraulic cylinder：￠100×440mm
3、Clamping hydraulic cylinder：￠63×1300m 4、hydraulic station motor power：3KW --380V -- 50Hz
5、solenoid valve voltage：220V 50 Hz
※Mainly purchased parts, raw materials and origin
|
Name of main parts |
Brands or place of origin |
material |
|
Main shaft |
Day steel production |
diameter242mm |
|
Swing arm |
Production by own |
Resin sand gray ironHT200 |
|
wallboard |
Jigang prduction |
Q235AWelding parts |
|
bearing |
HRB,ZWZ,LYC |
|
|
expand chuck |
Zhejiang xusheng |
3、4inch shared |
|
Main electrical appliance |
France Schneider |
|
|
button |
CHINT NP2series |
|
|
Air switch |
French Schneider |
|
|
Pneumatic components |
Zhejiang Sonor CSM |
|
|
Hydraulic station |
Shandong zaozhuang |
|
|
Brake pump |
zhejiang |
|
